BMB01/04 - Brake Temp Monitoring - BLE
Bluetooth Temperature Monitor Set for Brakes - BMB04

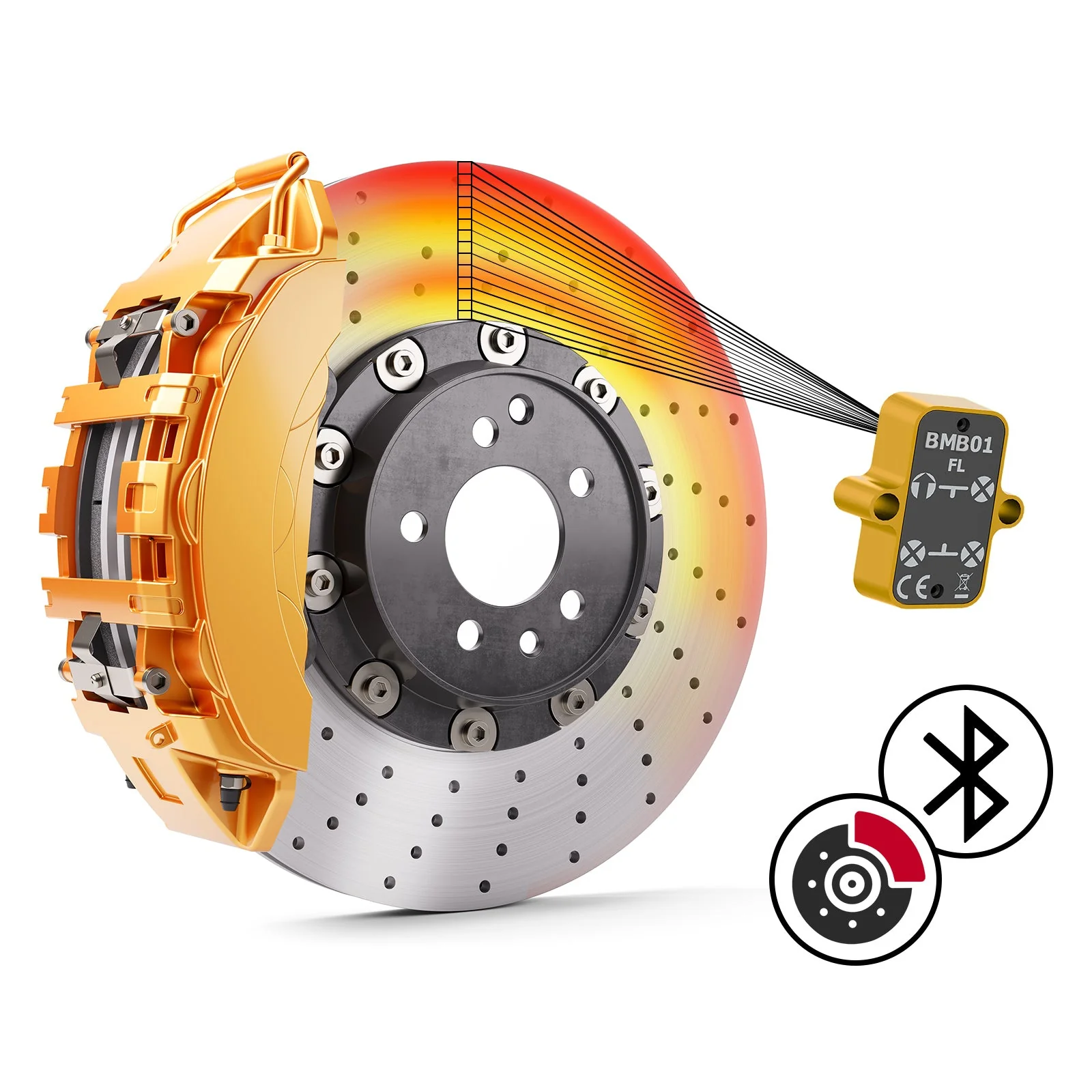

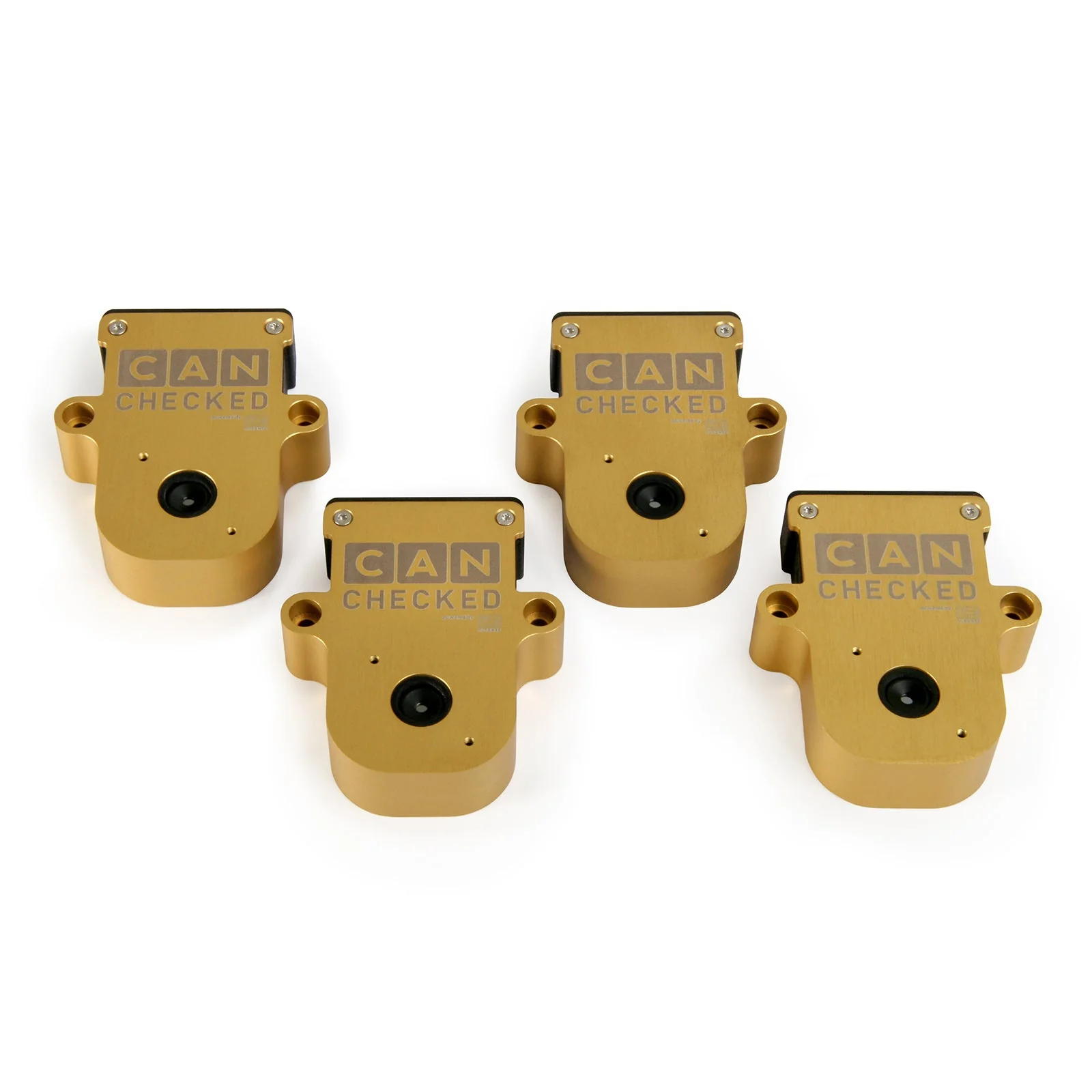

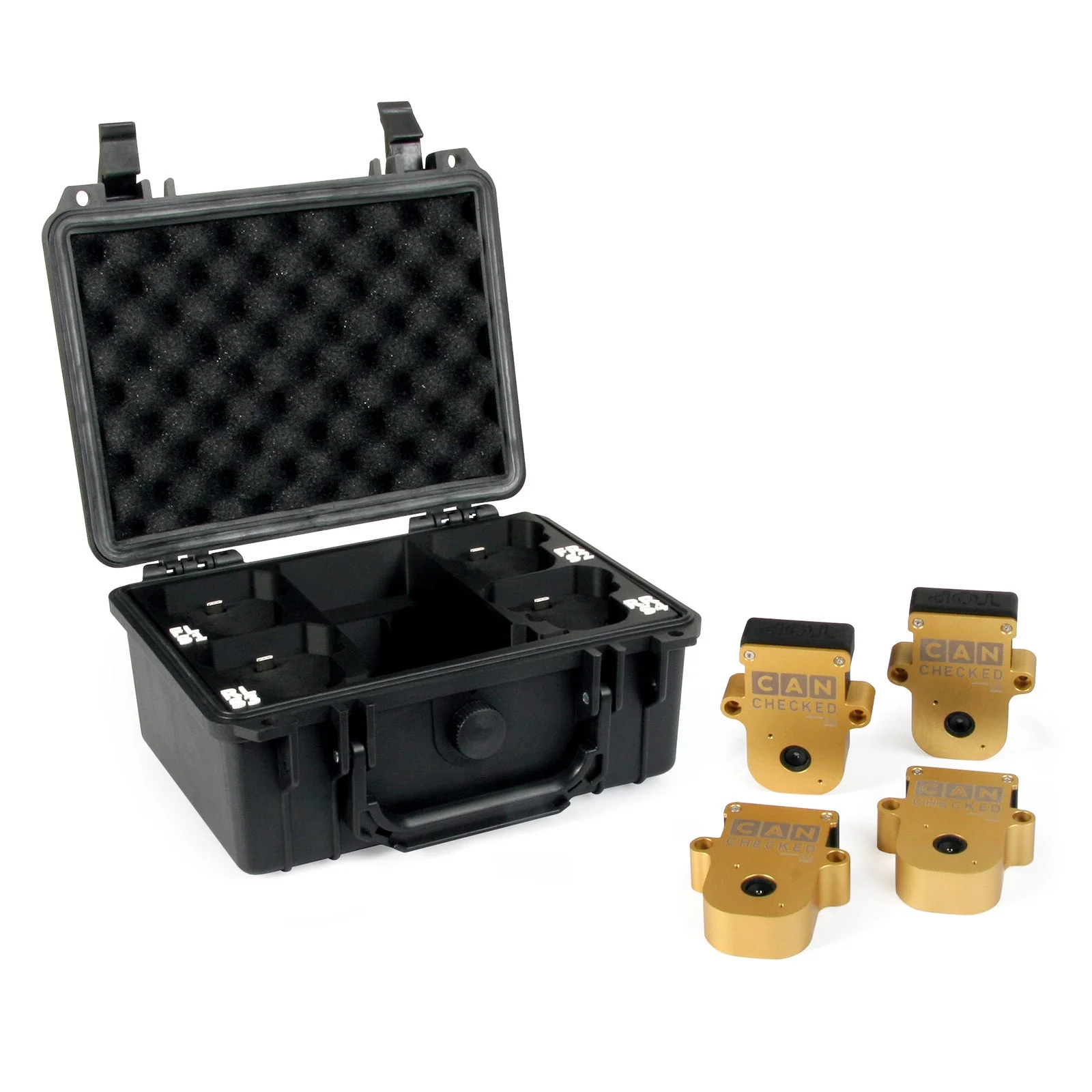

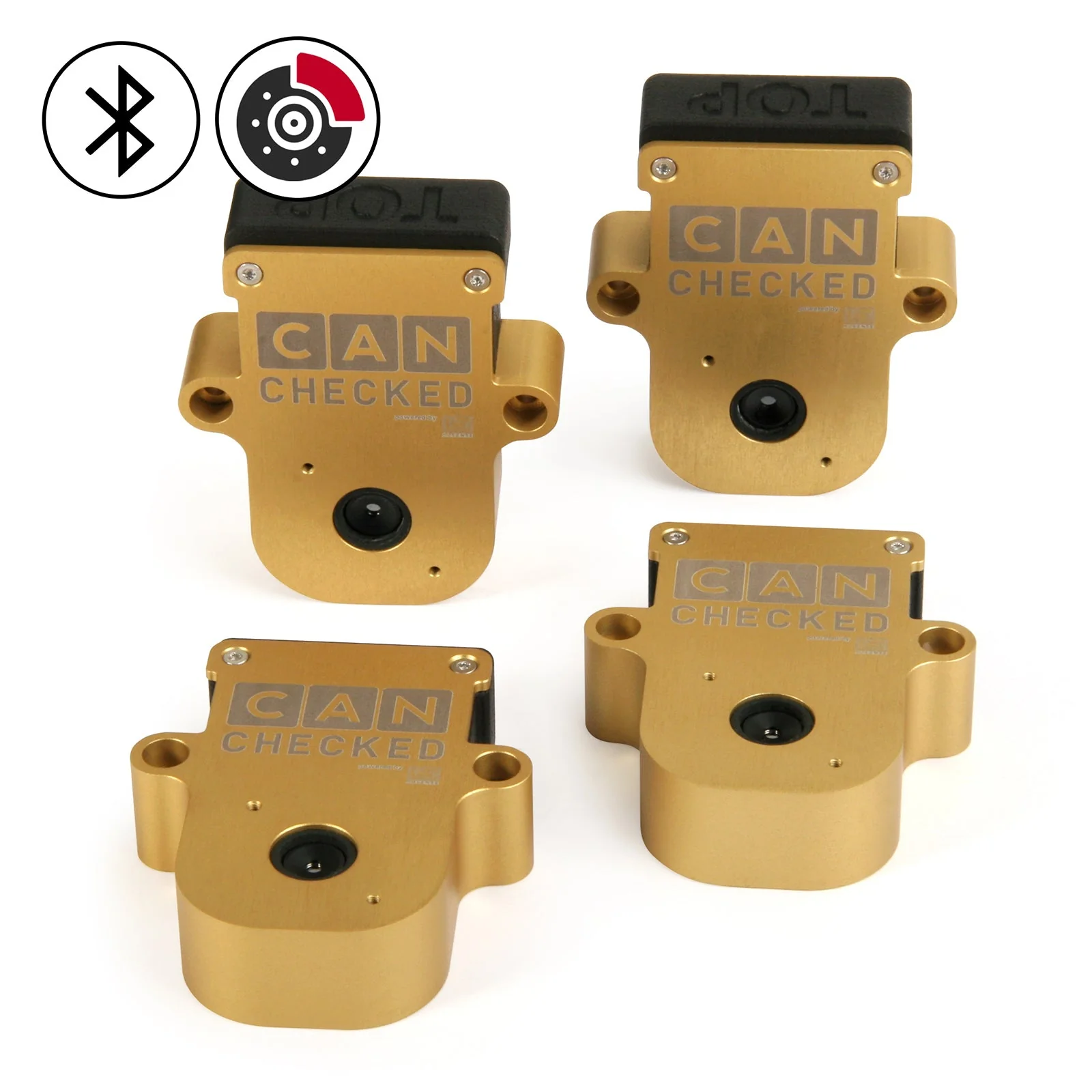

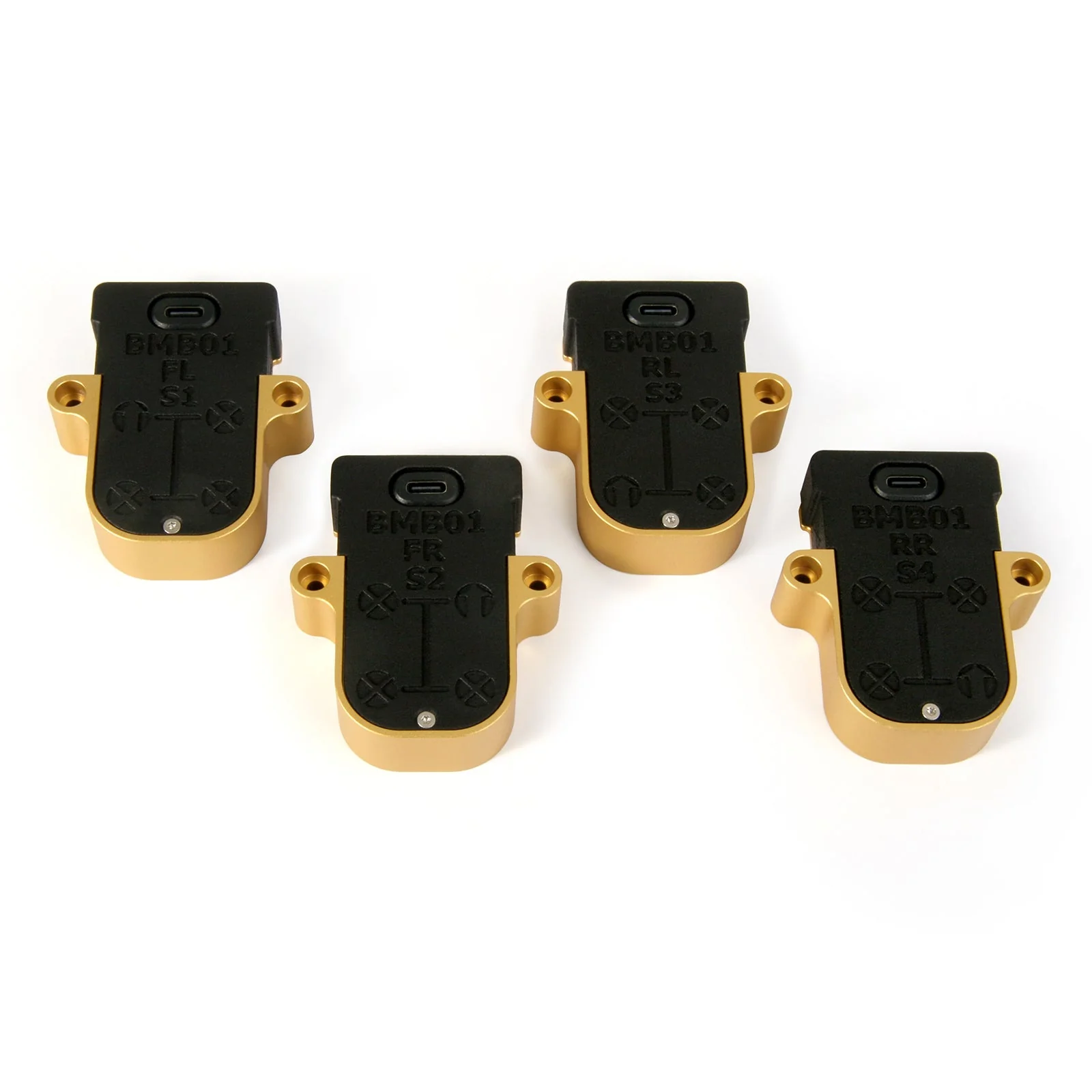

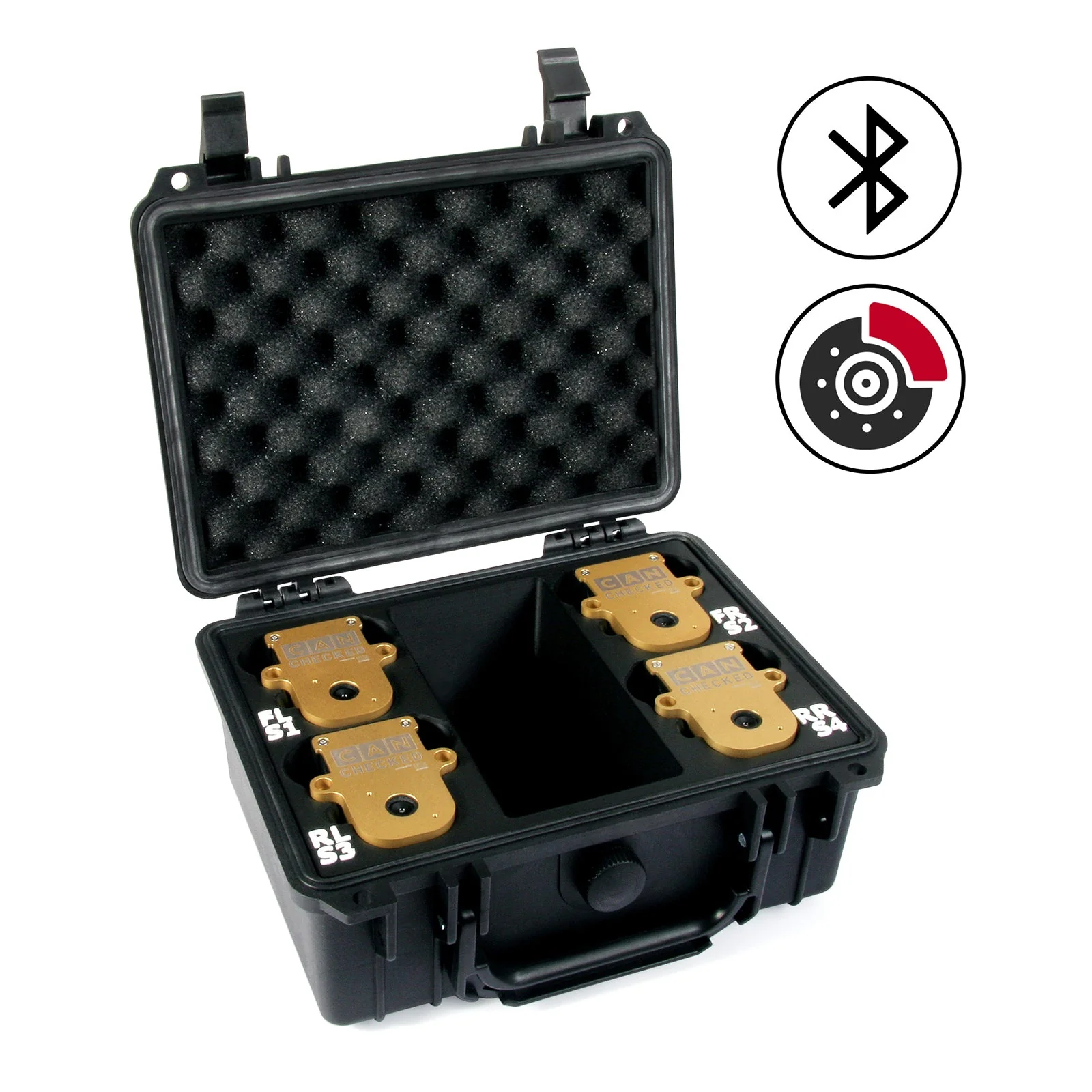

It has never been easier to monitor your brake performance—no wires needed! This Bluetooth Temperature Monitor Set is a complete, wireless system designed for racers and high-performance enthusiasts alike. With four advanced multi-channel infrared sensors, Bluetooth connectivity, and simple setup, this monitor set delivers real-time temperature data to help you fine-tune your vehicle’s performance. Installation is quick, and transferring the system between vehicles takes only minutes.
Key Features:
- Effortless Wireless Setup: Install and transfer between vehicles in minutes, without the hassle of wires
-
Advanced Multi-Channel Monitoring:
- 3 configurable temperature channels per brake, totaling 12 channels across the set
- Adjustable refresh rate up to 10Hz for accurate, real-time insights
-
Long-Lasting, Rechargeable Battery:

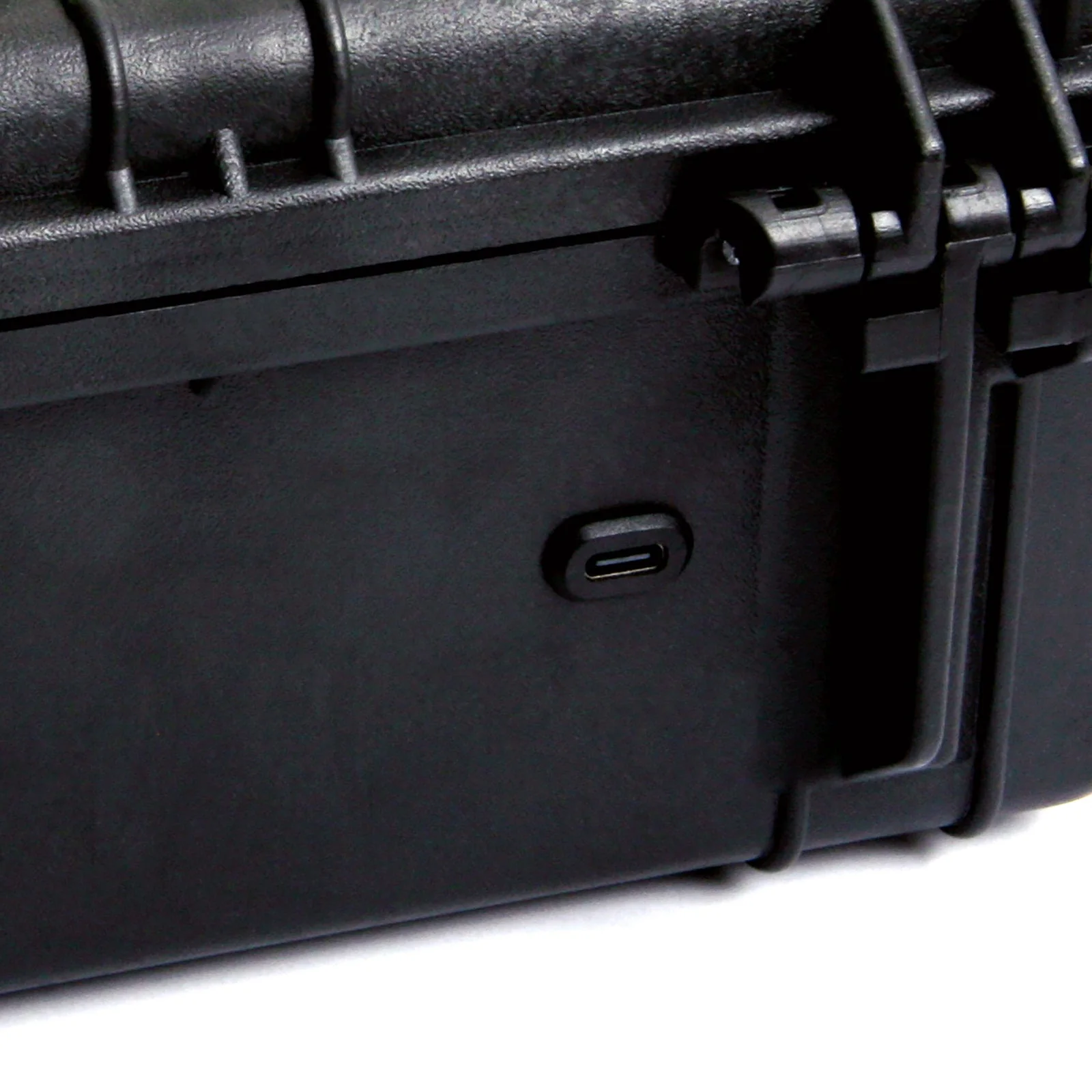

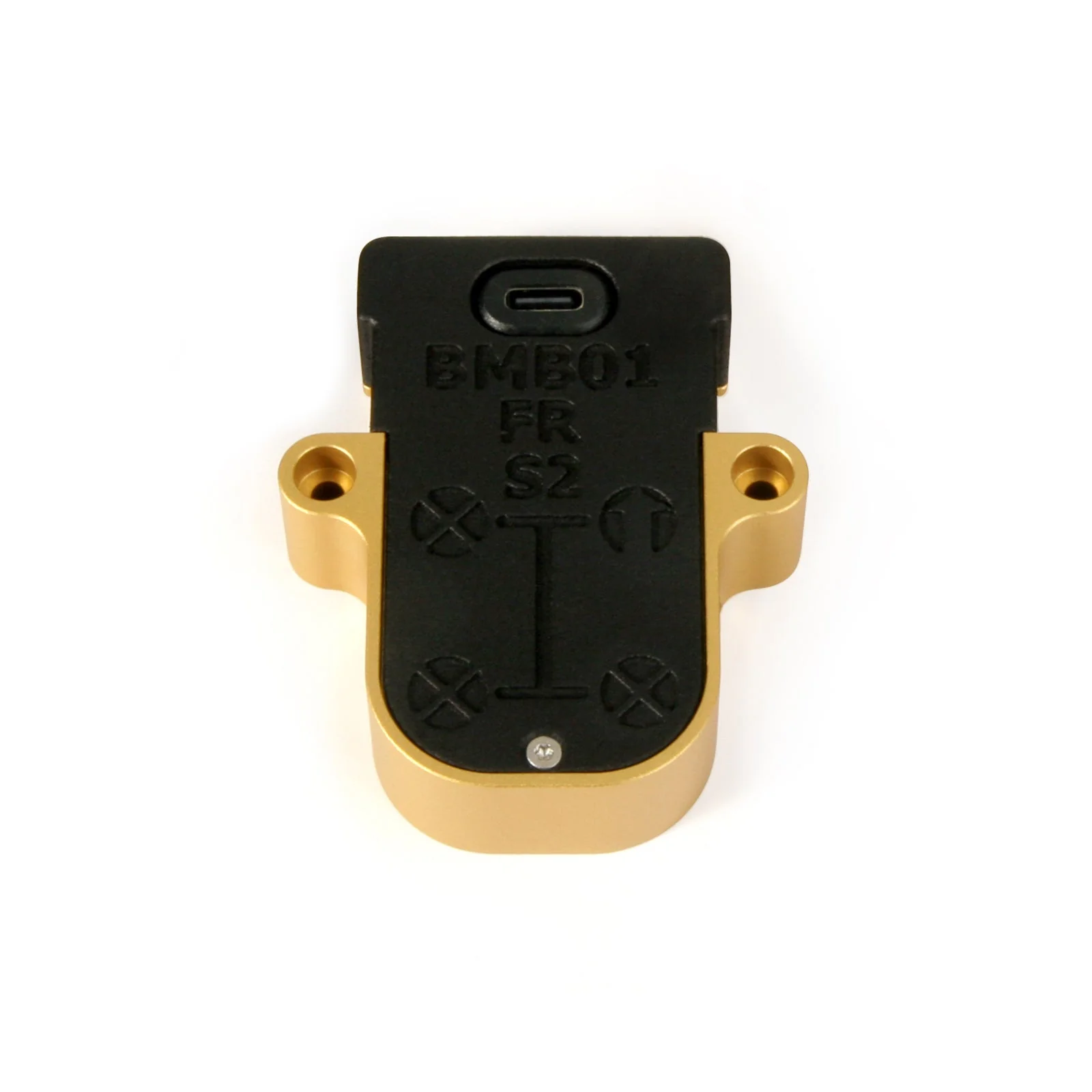

- 250mAh battery (USB-C charged) with up to 15 hours of active track use
-
High Precision and Wide Temperature Range:
- Operating range: -40 to +800°C
- Field of view: 110° standard, with an optional 55° for focused measurements on request
-

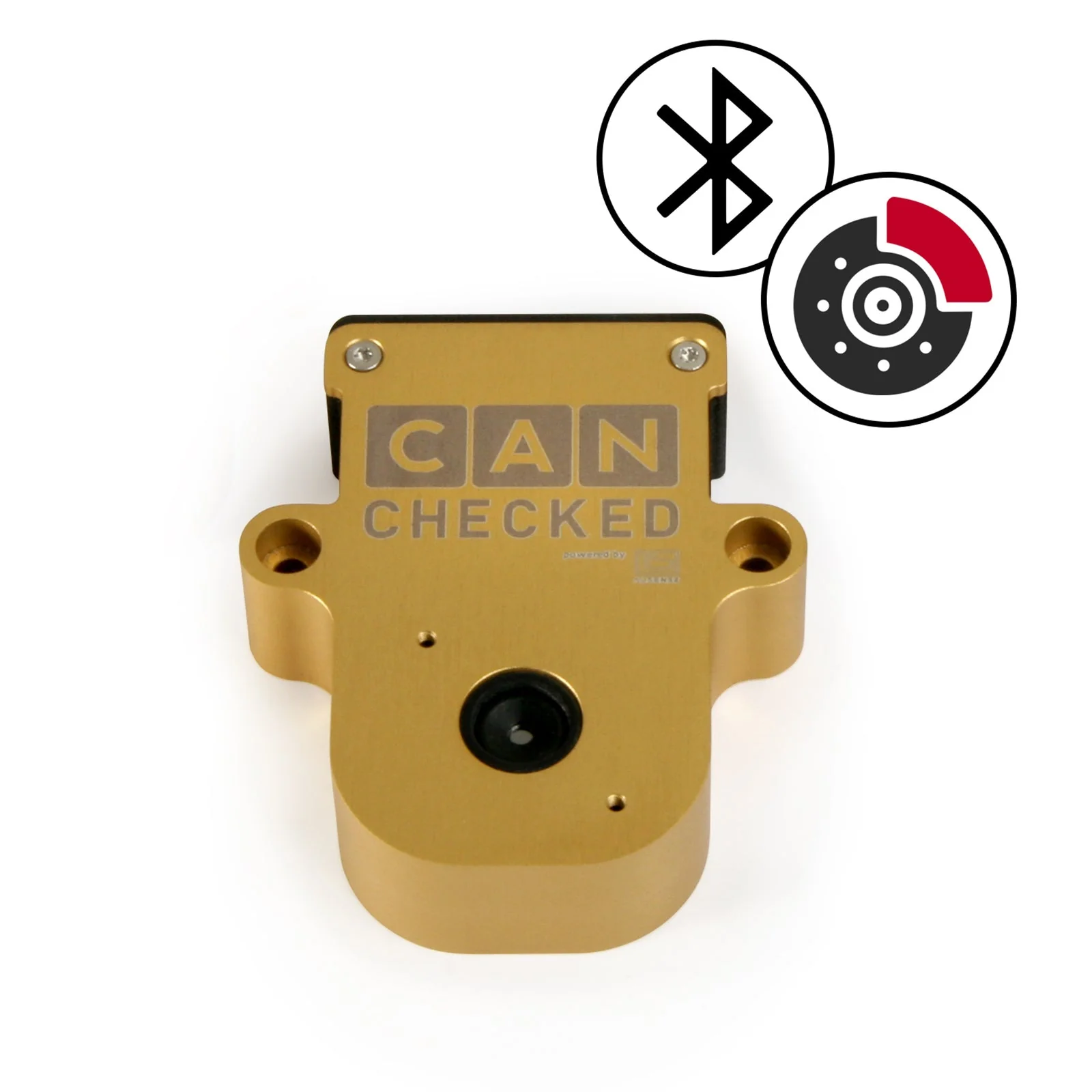

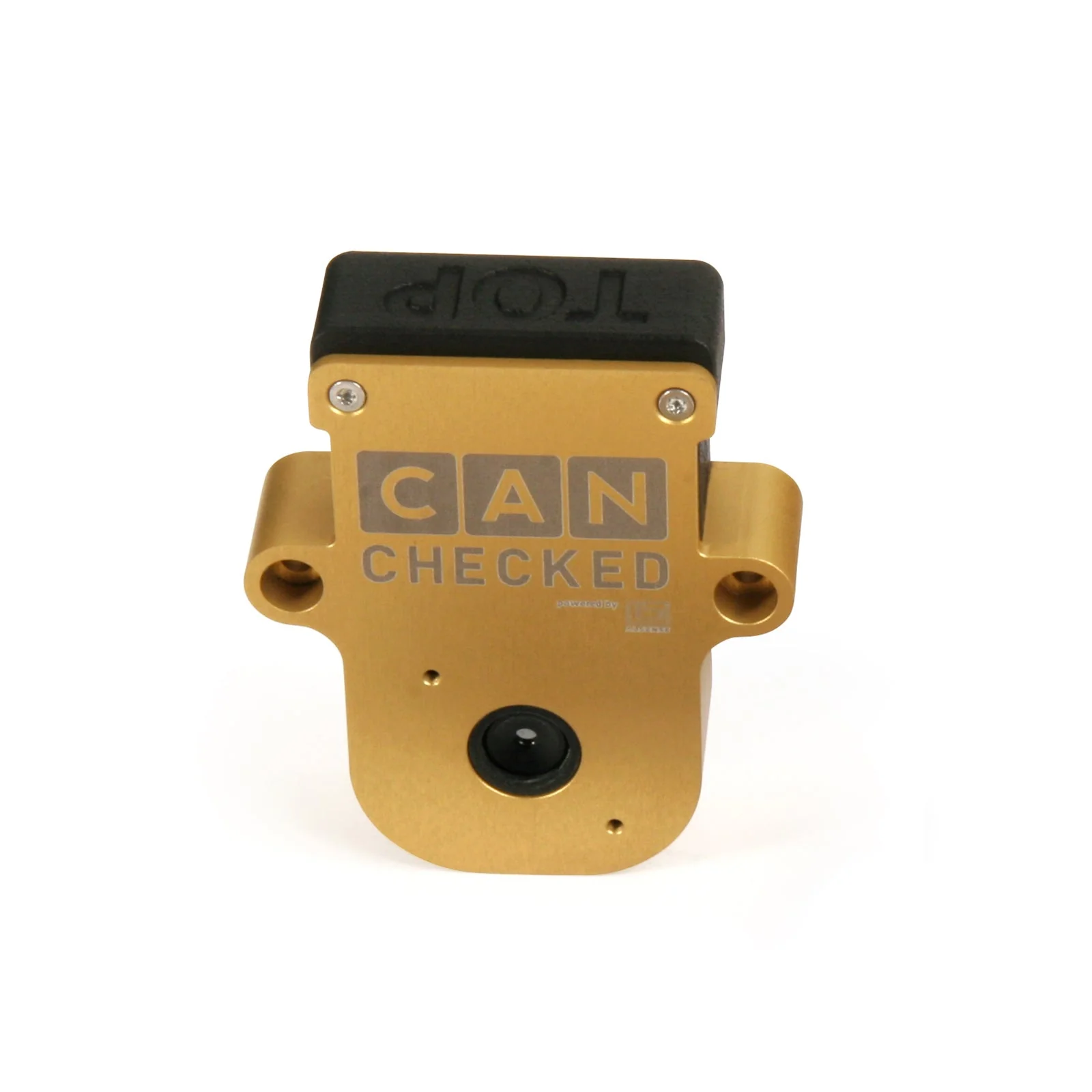

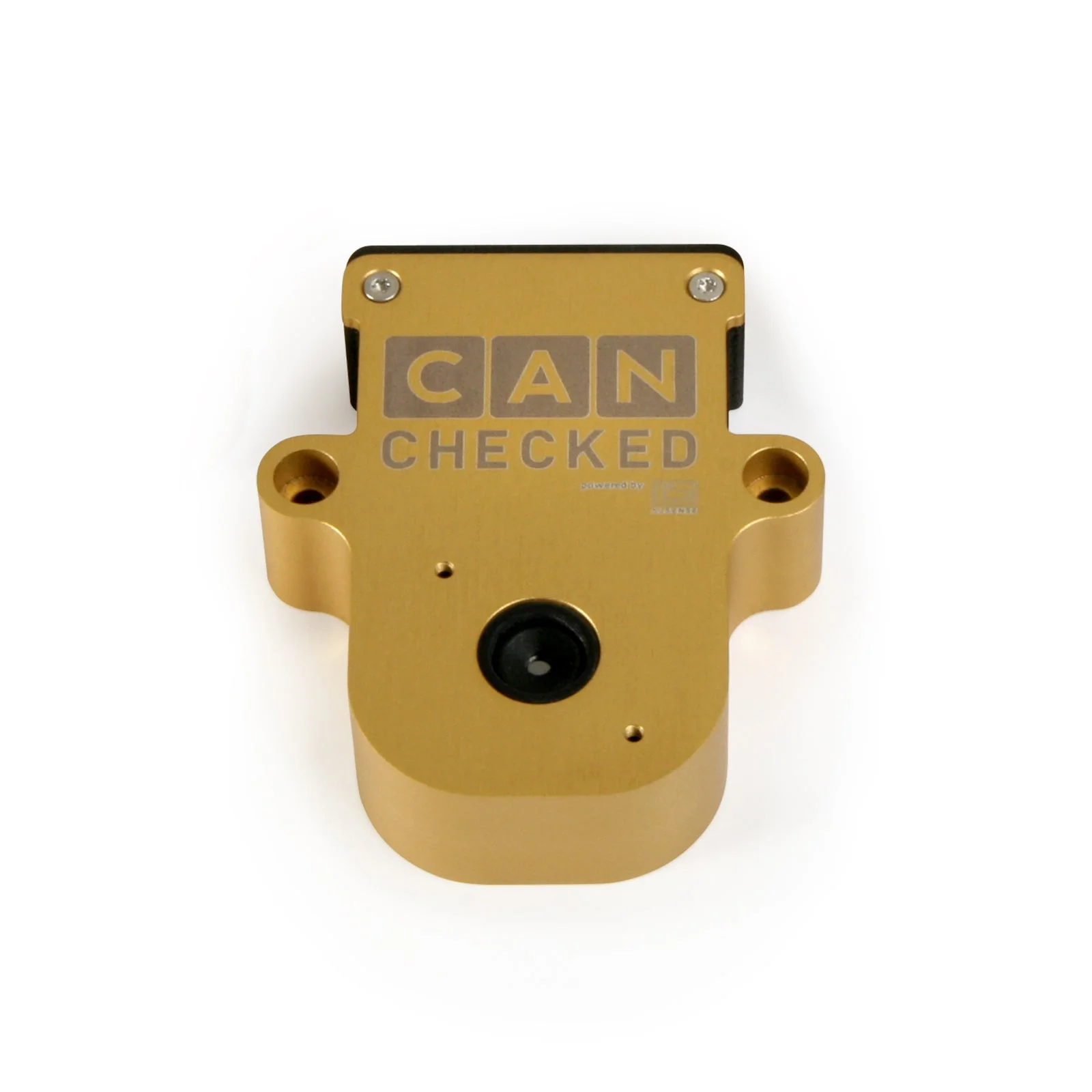

Rugged, Compact Design:
- Dimensions: 64.0 x 42.0 x 17.5 mm per sensor
- Weight: 57g per sensor
- Housing: Durable aluminum/polyamide, rated IP65 for tough environments
- Optional Protecting Lens: Available to enhance durability and protection
- Operating Temperature: -40 to +85°C
